Hamamatsu Orca Flash 4.0 LT3

The ORCA-Flash4.0 LT3 is a new scientific CMOS camera for fluorescence imaging which has been improved from the ORCA-Flash 4.0

Equipped with the high level of performance required for fluorescence imaging such as life science applications, it can be used not only for basic research applications but also for integration into various types of equipment.

Scroll to see more

Product benefits

Large field of view

The wide field of view of 13.312 mm (H) × 13.312 mm (V) allows more information to be obtained in a single shot. This contributes to higher throughput in experiments such as DNA chip reading.

High speed readout

Capable of 40 frames/second readout, which is even faster than the conventional ORCA-Flash4.0 LT+ (30 frames/second). This is useful for applications which requires real time measurement with high temporal resolution.

High resolution

The ORCA-Flash4.0 LT3 boasts a high resolution: 2048 (H)×2048 (V)

Low readout noise

1.5 electrons rms, 0.9 electrons median

High S/N equivalent or better than BSI camera

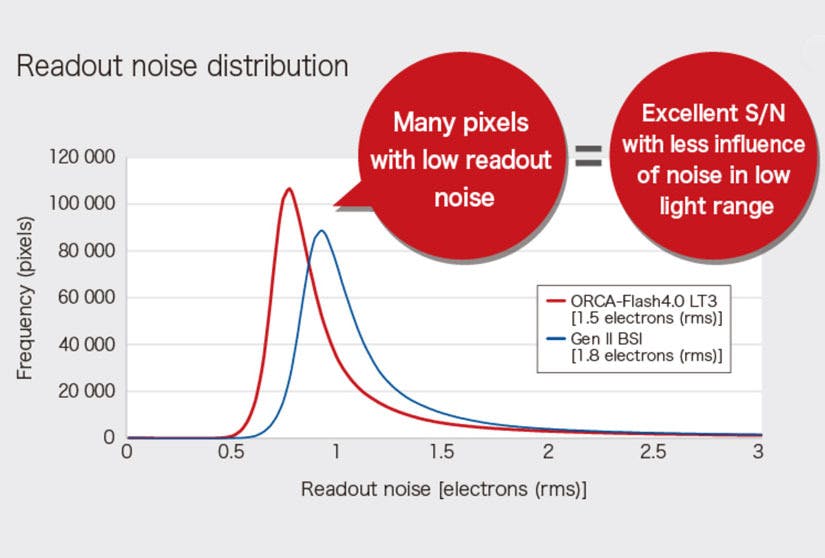

The graph opposite compares the readout noise distribution with the Gen II BSI camera* and shows that the ORCA-Flash4.0 LT3 has more pixels with smaller readout noise. With a low readout noise of 1.5 electrons rms, the ORCA-Flash4.0 LT3 delivers high S/N comparable to or better than a BSI camera, especially in the low light range. This performance can be demonstrated in high quality multidimensional imaging, as typified by long time-lapse imaging with low excitation light with low phototoxicity and photobleaching.
