Scientifica IVM Mini Single micromanipulator Technical Data
Scientifica IVM Mini Single

Scientifica IVM Mini Single

Schematics

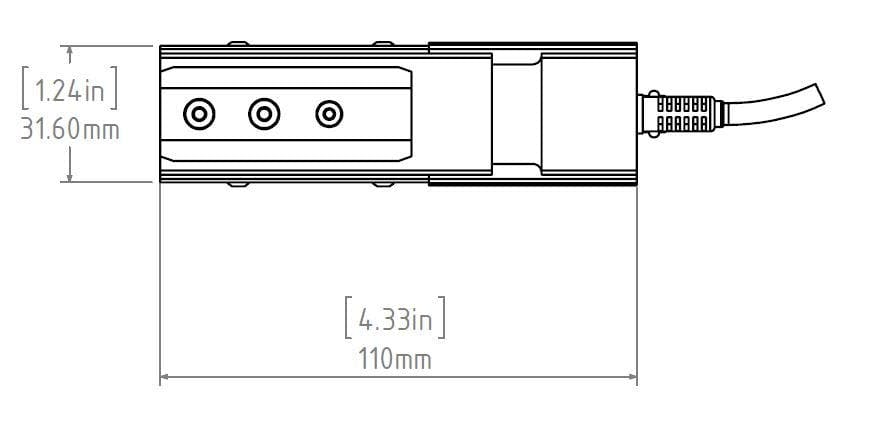

Schematic IVM Mini Single Front

Front view

Schematic IVM Mini Single Side

Side view

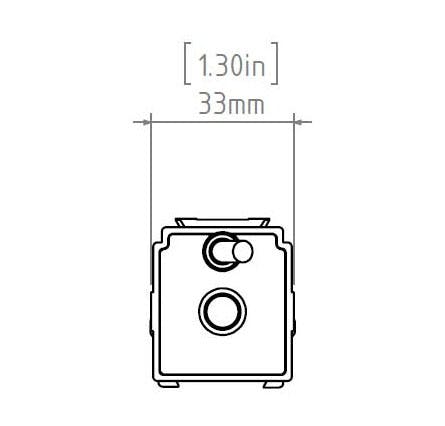

Schematic IVM Mini Single Top

Top view

Accessories

Extended Right Angled Kopf Mount (IVM-650-00)

Allows you to mount the IVM in one of four mounting positions on the Kopf or Stoelting manipulator.

Dovetail Probe Holder (PH-1000)

Dovetail probe holder to fit bars/probes

Electrode Holding Bar

Electrode/probe holding bar with v groove, which also attaches to the LBM-7 manipulator, PatchStar, MicroStar and IVM.

Design and Specifications

  • Number of axes: 1
  • Travel distance: 20mm
  • Electronic resolution: 20 nm
  • Minimum step size: 0.1 µm
  • Minimum speed: 1 µm per second
  • Maximum speed: 4 mm per second
  • Memory positions: 50 on control device (unlimited via LinLab)
  • Software: 50 on control device (unlimited via LinLab)
