Scientifica Motorised Movable Base Plate (MMBP)
Scientifica Motorised Movable Base Plate (MMBP)

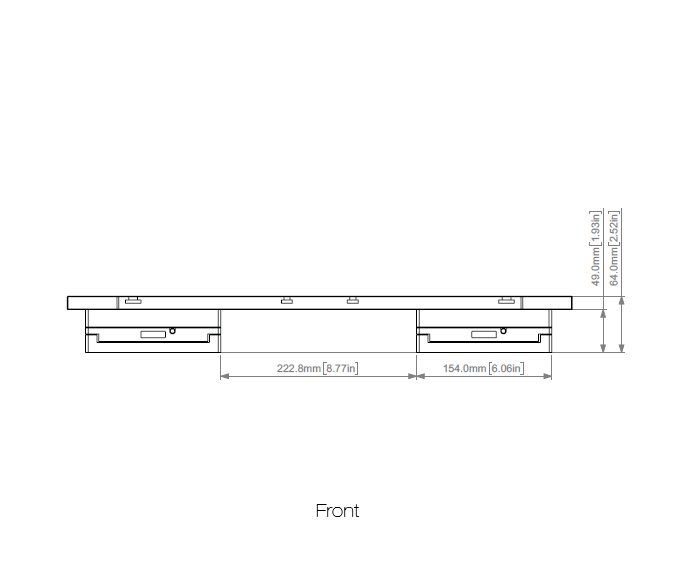

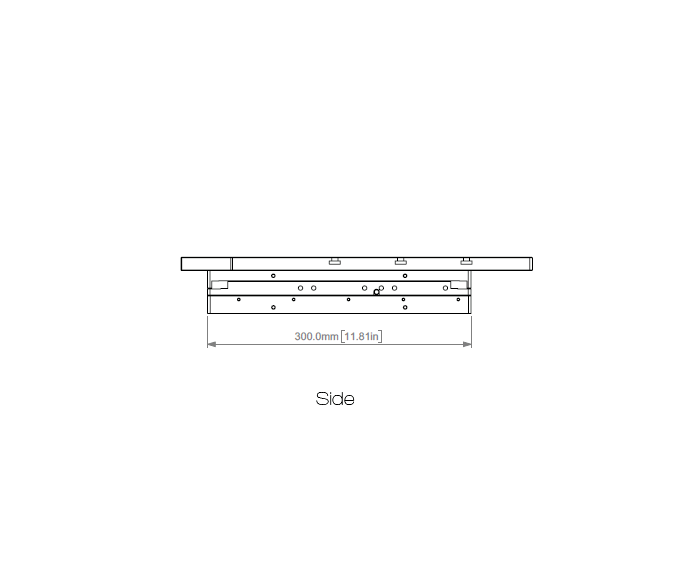

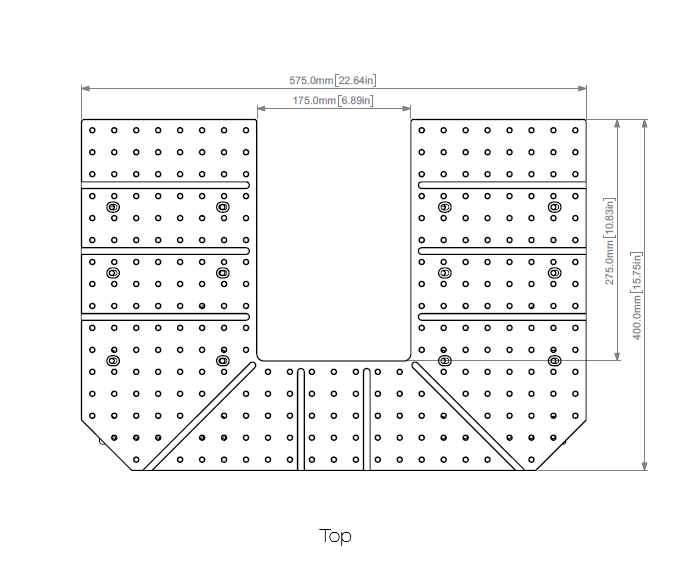

Schematics
Technical Specifications
- Number of axes: 2
- Travel distance: 50 mm (in X and Y axes)
- Electronic resolution: 20 nm
- Minimum step size: 0.1 µm
- Minimum speed: 1 µm per second
- Maximum speed: 4 mm per second
- Memory positions: 50 on control device (unlimited via LinLab)
- Software: LinLab for Windows
Research Papers
-
Distinct Ventral Pallidal Neural Populations Mediate Separate Symptoms of Depression.
Knowland, D., Lilascharoen, V., Pacia, C., Shin, S., Wang, E. and Lim, B. (2017). Distinct Ventral Pallidal Neural Populations Mediate Separate Symptoms of Depression. Cell, 170(2), p 284-297 https://doi.org/10.1016/j.cell.2017.06.015
-
Random-access scanning microscopy for 3D imaging in awake behaving animals.
Nadella, K., Roš, H., Baragli, C., Griffiths, V., Konstantinou, G., & Koimtzis, T. et al. Random-access scanning microscopy for 3D imaging in awake behaving animals.(2016). Nature Methods, 13(12), 1001-1004. http://dx.doi.org/10.1038/nmet...
-
Functional imaging of visual cortical layers and subplate in awake mice with optimized three-photon microscopy.
Yildrim, M., Sugiharam, H., So, PTC., & Sur, M. Functional imaging of visual cortical layers and subplate in awake mice with optimized three-photon microscopy. (2019). Nature Communications, 10(177). https://www.nature.com/article...
